Re: Amiga screen modes in wscons

[Carlos Milán Figueredo <cmilanf%hispamsx.org@localhost>]

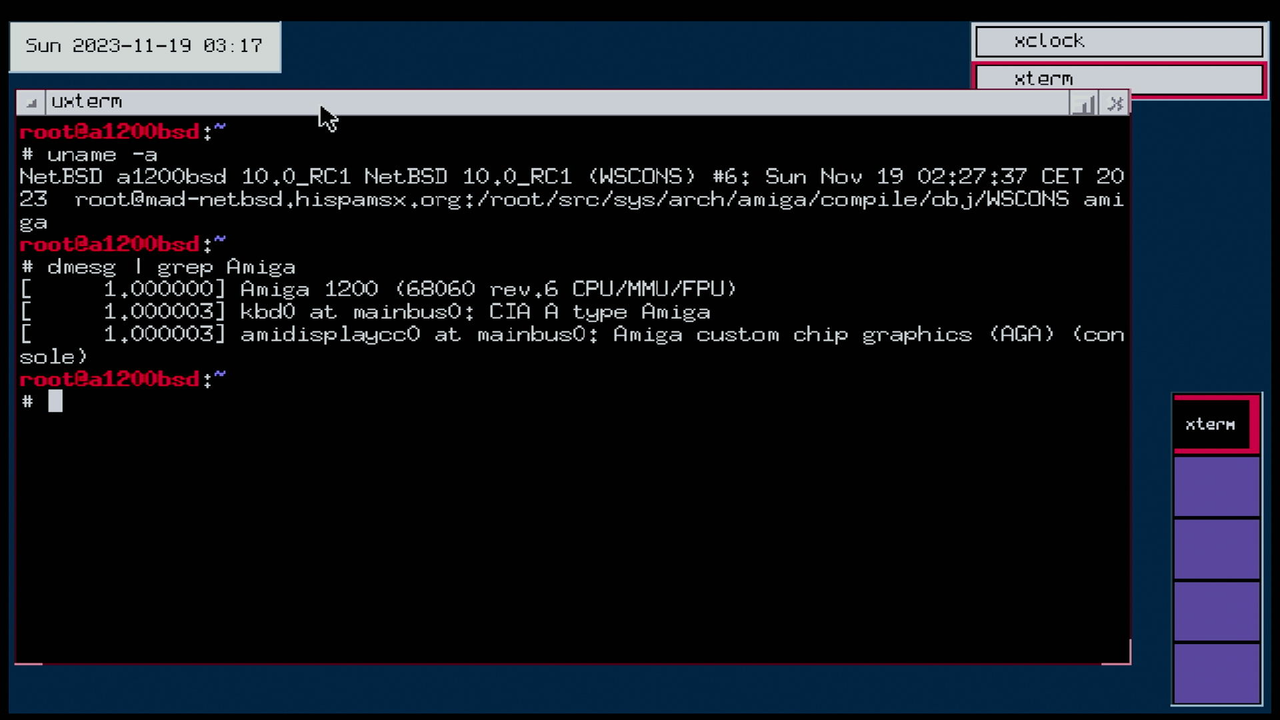

Problem solved! After some trial and error I have been able to find the values that works well for my scandoubler and monitor combination, the result can be seen here [1], screen properly aligned and centered. I documented here [2] all the steps I followed in case someone hits the same issue in the future. What actually pointed me in the right path was this [3] old 1995 source code of Linux amifb.c. I tried the values for the mode defined as "640x480, 64 Hz noninterlaced AGA mode (31.89 kHz) and they worked well for my case.

Many thanks for all the guidance :)

Regards,
Carlos

[1] https://i.postimg.cc/SQ6jwBPX/Screenshot-2023-11-19-03-13-58.png
[2] https://gist.github.com/cmilanf/d3a1219edeeafee3ae50ca3c82fdb082#file-3-setting-wscons-videomode-md
[3] https://www.cs.cmu.edu/afs/club.cc.cmu.edu/usr/jhutz/project/Linux/src/arch/m68k/amiga/amifb.c
